Heating and cooling without blown air.

An outdoor heat pump warms or cools water. The water runs through slim aluminium panels on the wall. The room's surfaces settle at the right temperature, and heat moves by radiation.

Grid of deep concrete window openings, half in shadow.
Illustrative. Stock photo, not a GLN building.

Stand next to a working panel in our Wuhan showroom. Touch it. Listen to it.

Book a visit

Not in the room

  1. No vents.

    Heat moves by radiation from the panel. Nothing is blown into the room, so there is no draught on your neck.

  2. No ducts.

    Water carries the heat. There are no ducts above the ceiling and no grilles in it.

  3. No fan indoors.

    No fan and no compressor in the room. The compressor is in the heat pump outside.

  4. No pipes on walls.

    Pipes come down inside the wall from the ceiling and join each panel with a single fitting.

  5. No condensation water indoors.

    No condensation water appears indoors.

How it works

Three parts: a heat pump outside, water in pipes, panels on the wall.

Section through a wall with a GLN panel The pipe runs in the ceiling slab, comes down inside the wall and joins the panel with one fitting. The panel stands 90 millimetres off the wall and is 1800 millimetres tall. Heat moves between the panel and the room by radiation. 90 1800 Not to scale
Section through a wall. Dimensions in mm.

Key to the drawing

A
Ceiling slab. The pipe runs through it.
B
Pipe inside the wall. It comes down from the ceiling and never shows on the wall.
C
One fitting joins the pipe to the panel.
D
Panel, 600 × 1800 mm, 90 mm from wall to front edge. Aluminium fins.
E
Heat moves between panel and room by radiation. No air is blown.

In order

  1. Outside. An air-to-water heat pump warms the water in winter and cools it in summer.
  2. In the walls. The water flows through pipes to the panels and back.
  3. In the room. Walls, floor and furniture settle at the right temperature. You feel the room, not a stream of air.

Why cool walls work

Felt temperature is roughly the average of air and surface temperature (ASHRAE 55, ISO 7730). Cool the surfaces and the room feels cooler, with no cold air aimed at you.

27 °CAir

22 °CWalls

24.5 °CFeels about: (27 + 22) ÷ 2

Spec

Wall panel R-18. Output figures are demo figures.

Wall panel R-18 specification
ModelR-18 wall panel
Size600 × 1800 × 90 mm
Depth90 mm from wall to front edge
FinsAluminium
CoolingAbout 420 W per panel (demo)
HeatingAbout 510 W per panel (demo)
Water fromOutdoor air-to-water heat pump
IndoorsNo fan. No compressor.
AirNo vents. No ducts.
PipesInside the wall, down from the ceiling. One fitting per panel.
CondensationNo condensation water appears indoors.
FinishesMill aluminium, matt black, chalk white

420 WCooling per panel (demo)

510 WHeating per panel (demo)

Close-up of angled metal fins on a building façade.
Illustrative. Façade fins on someone else's building, not a GLN panel.

On site

Pipes go in before the plaster. Panels go up last.

  1. Survey. We measure each room and work out how many panels it needs.
  2. Pipes. Before plastering, pipes run through the ceiling and down inside the walls.
  3. Heat pump. The outdoor unit goes on a balcony, a roof or in the yard.
  4. Panels. Each panel goes on the wall and joins the pipe with a single fitting.
  5. Start-up. We fill and test the system, then show you the controls.

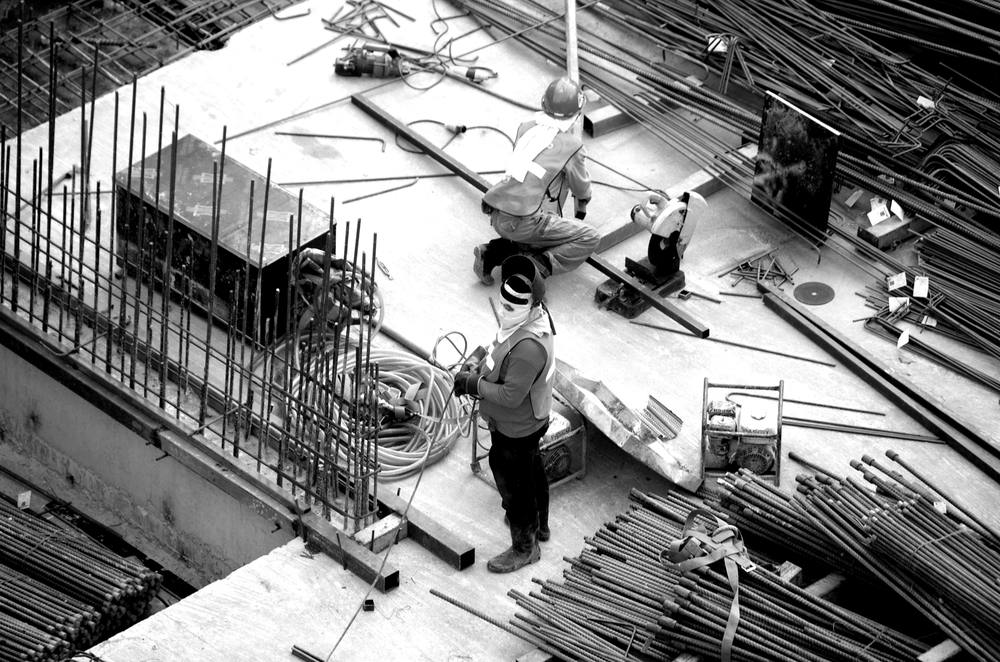

Two workers on a rebar deck among bundles of steel bars and hoses, seen from above.
Illustrative. A building site, not a GLN project.

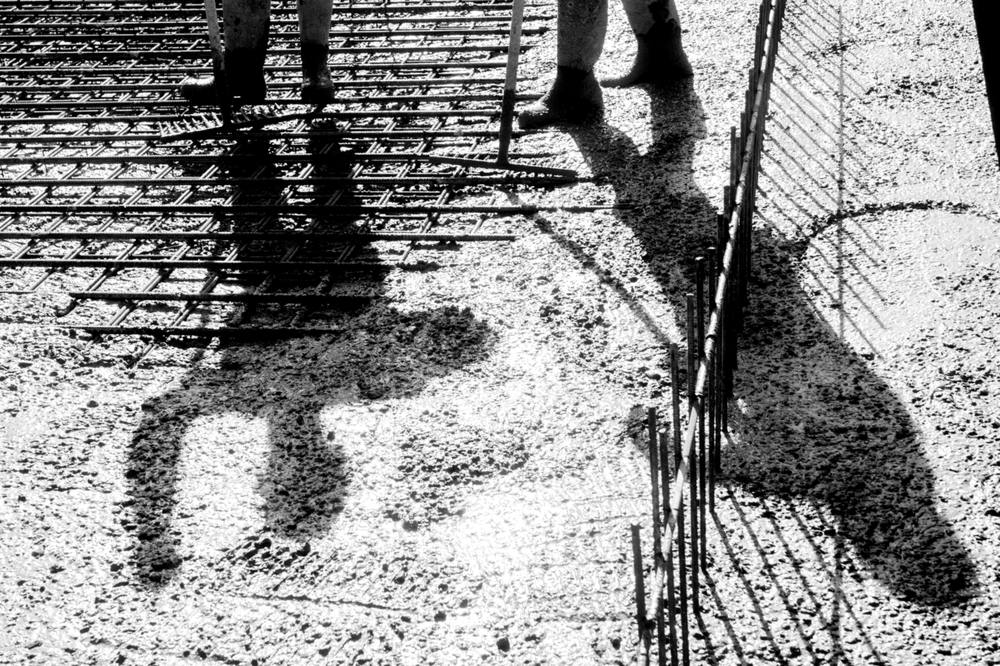

Shadows of two workers falling across rebar and fresh concrete.
Illustrative. Stock photo.

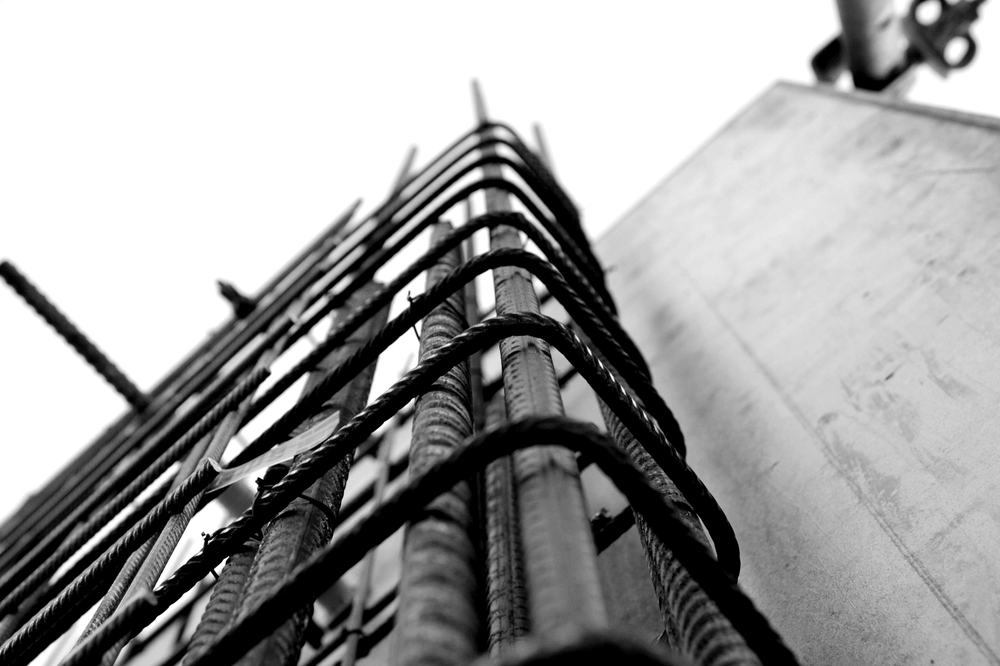

Close-up of a rebar cage rising against a concrete wall.
Illustrative. Stock photo.

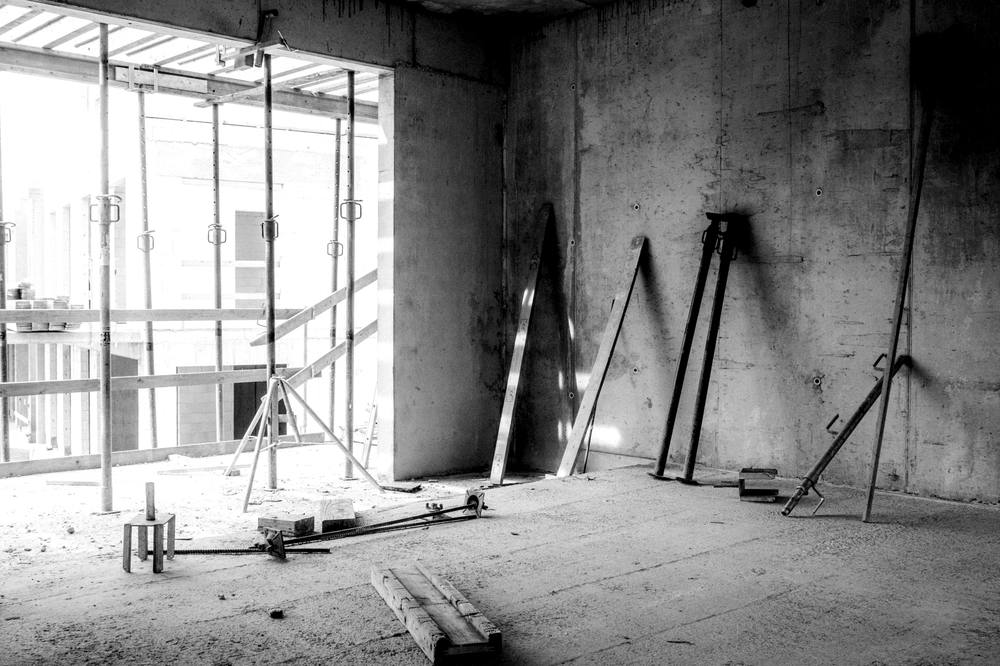

Unfinished concrete room with steel props and scaffolding leaning on the walls.
Illustrative. A room before plastering, the stage when pipes go in.

Every photo on this page is a stock photo.

None of them shows a GLN project or product. They show the kind of work that happens before a panel goes on a wall.

Prices

Demo prices in yuan. Every home is different, so we price yours after a survey.

Demo prices
ItemUnitPrice (demo)
R-18 wall panel, 600 × 1800 × 90 mmeach¥6,800
Outdoor heat pump, 10 kWeach¥38,000
Pipework inside walls and ceilingper m² of floor¥160
Design, installation and start-upper home¥9,800

Example: 3-bedroom flat, 110 m², 8 panels

¥119,800

8 × ¥6,800 + ¥38,000 + 110 × ¥160 + ¥9,800

Get a quote
Stacked concrete volumes of a brutalist theatre against a pale sky.
Illustrative. Not our showroom.

Visit the showroom

A room with working panels. Come in summer or winter and stand in it for ten minutes.

Address
66 Zhongnan Road, Wuchang District, Wuhan
Open
Tuesday to Sunday, 10:00 to 18:00
